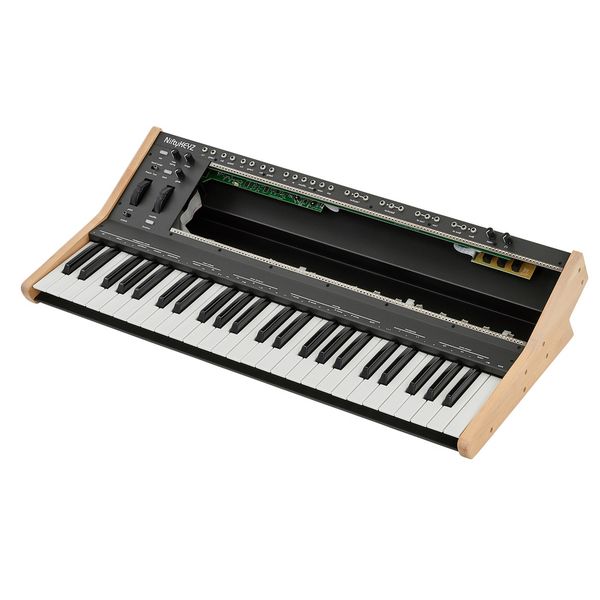

Keyboard For Eurorack Modules

  • 49-Key synth-action keyboard with aftertouch
  • 4x CV/Gate outputs - it can be split by keyboard zones and used polyphonic or monophonic modes
  • CV outputs for aftertouch
  • Velocity
  • Modwheel/LFO and expression
  • Clock (internal/external and clock divider)
  • 2x Buffered multipliers
  • Multimode arpeggiator
  • Auto-chord function
  • Transpose, glide, swing
  • Clock-synchronised LFO
  • Sustain pedal input (controls MIDI and gates)
  • 2x Mono output 6.3 mm jack and mirrored 3.5 mm outputs each
  • Headphone output with 6.3 mm headphone jack
  • USB-MIDI class compliant
  • MIDI input via USB and 5-pin Din
  • MIDI-Thru via USB and 5-pin Din
  • Module installation depth: 55 mm
  • Power supply specifications: 1.5A (+12V) / 1A (-12V) / 1A (+5V)
  • Width: 112 TE
  • Dimensions: 700 x 360 x 130 mm
  • Weight: 6.7 kg

Note: Modules and accessories are not included in the delivery.

  • Available since April 2022
  • Item number 542015
  • Sales Unit 1 piece(s)
  • Width 112 TE / HP
  • Height 3 U
  • Power Supply Yes
  • Formfactor Keyboard
  • Power Supply Specifications +12V/1500mA, -12V/1000mA, +5V/1000mA
$529
The shipping costs are calculated on the checkout page.
Available at short notice (usually 2-5 days)
Available at short notice (usually 2-5 days)

This product has been ordered and is expected to arrives in the next few days.

Standard Delivery Times
1

10 Customer ratings

4.9 / 5

You have to be logged in to rate products.

Note: To prevent ratings from being based on hearsay, smattering or surreptitious advertising we only allow ratings from real users on our website, who have bought the equipment from us.

After logging in you will also find all items you can rate under rate products in the customer centre.

features

quality

8 Reviews

GW
fantastic
Gunnar Waage 05.05.2023
I love this keyboard and what can be done with it. Those who want this keyboard would be well adviced to jump on it now since the guys at Pittsburgh modular have a habit of making limited batches of their products and then turn to something else. Fantastic tool, even the keybead I prefer over the Arturia KeyLab MkII.
features
quality
3
0
Report

Report

MW
I love this thing so much, it makes me want to cry :)
Mark W. 27.05.2025
I develop modules myself, poetaster's tonetoys, so I always need a rack on hand for development purposes. But one with a keyboard, arp., midi in, etc, etc is more than I could hope for. I play it every day.

The keys/aftertouch/velocity are responsive and mapping ratios seamless. The zone setup with splitting is just great. The auto chord function works well.

It's a really great bargain and thank you cre8audio!
features
quality
0
0
Report

Report

google translate de
Unfortunately there was an error. Please try again later.
T
Das beste Modularkeyboard bisher
Tos 27.06.2022
Während mich frühere Produkte in dieser Kategorie nicht ganz überzeugt hatten, schien hier erstmals alles zu stimmen: 112 TE Platz für Module, bis zu vierfache Polyphonie und eine sich in vielen nützlichen Details zeigende Praxisnähe der Designer. Alles funktioniert wie es soll und macht einen qualitativ guten Eindruck. Natürlich gibt es bei nicht-trivialen Produkten immer etwas, was noch zu verbessern wäre. Beispielsweise ist der integrierte Arpeggiator und Sequencer noch sehr einfach, aber das ließe ich durch Firmware Updates verbessern. Bei der Hardware ist das für ausgelieferte Geräte natürlich nicht mehr möglich, deshalb erwähne ich hier alle Kritikpunkte, die mir aufgefallen sind:
- Es gibt für Velocity nur einen gemeinsamen Ausgang für alle vier Stimmen. Der Platz für 3 weitere Ausgänge wäre bei entsprechend angepasstem Layout vorhanden – schade.
- Stattdessen hätte man auch entweder beiden Multiples und Output-Mixern je einen Aus- bzw- Eingang mehr spendieren können. Was natürlich der Nützlichkeit der vorhandenen Utility-Funktionen keinen Abbruch tut.
- Die Platine auf der die beiden Volume-Regler für Kopfhörer und Main Out sitzen, ragt etwas weit nach unten, sodaß sich nicht mehr alle Module darunter montieren lassen. (Beispielsweise lässt sich ein Strymon Starlab nicht ganz rechts, sondern nur 6 TE nach links versetzt montieren).
Trotz dieser kleinen Kritikpunkte gebe ich die volle Punktzahl, da es sich um ein insgesamt erfreulich gut durchdachtes Produkt handelt, dass zudem in seiner Kategorie aktuell ohne Konkurrenz ist. Es eignet sich vermutlich auch sehr gut für Einsteiger, ist aber auf jeden Fall auch eine tolle Ergänzung für existierende Modularsysteme.
features
quality
15
0
Report

Report

google translate de
Unfortunately there was an error. Please try again later.
O
Superteil
Oszillolo 03.05.2022
Ich bin super zufrieden mit der Funktionalität, den Schnittstellen und auch der Verarbeitung. Eine tolle Ergänzung zu meinem Modular-Setup. Vor allem die Tastatur und die Split-Funktionalität ist ein echter Gewinn verglichen mit Keystep und seinesgleichen.
features
quality
7
0
Report

Report
